Description
Introduction：
The traction gas springs in their free state, the piston rod is retracted inside, and the piston rod is pulled out by external force
Features：
■ It is opposite to the use of the function of the compressed gas spring and plays the role of tension assist.

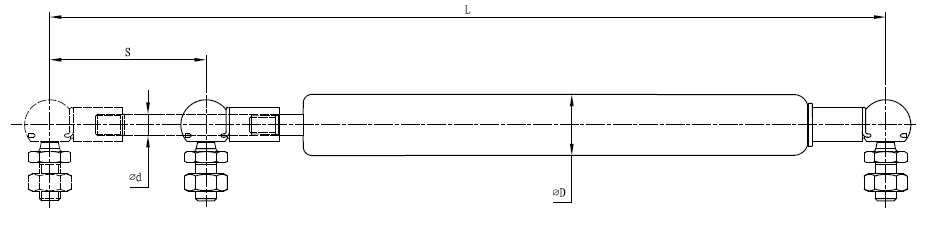

Dimensions and force range
Product Parameters
| d | D | L | S | F1 |
| (mm) | (mm) | (mm) | (mm) | (N) |
| 8 | 18 | 150-500 | 50-250 | 30-100 |
| 8 | 22 | 150-600 | 50-250 | 100-450 |
| 10 | 28 | 200-1350 | 50-600 | 150-1150 |

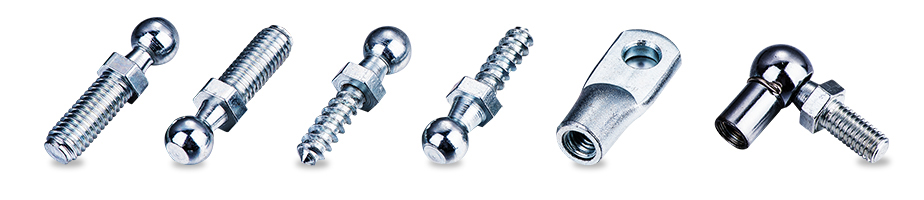

Please refer to our end fittings brochure for a comprehensive range of available.
If you have any questions about the design of compression gas springs, please contact lgs@lgs-gassprings.com
