Description

Introduction:

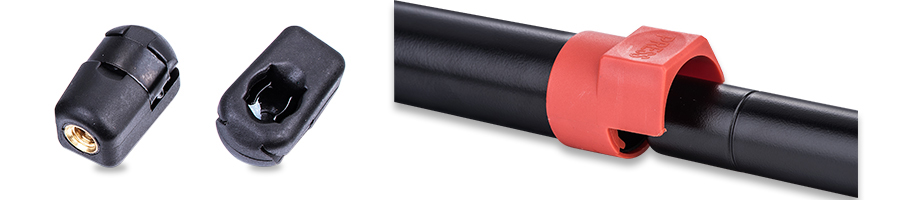

The protection gas spring is equipped with a locking protection device at the piston rod of a standard gas spring. When the lock is opened, it can be compressed.

Features:

■ In the case of a sudden failure of the gas spring can play a role in security protection.

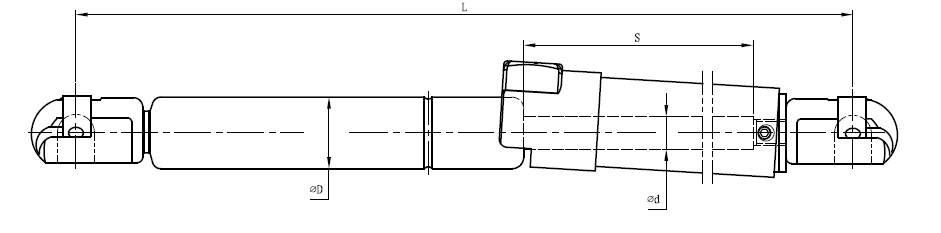

Dimensions and force range

Product Parameters

d D L S F1
(mm) (mm) (mm) (mm) (N)
6 15 95-600 20-250 50-400
8 18 95-800 30-350 50-750
9 18 95-800 30-350 50-950
10 22 150-1200 50-550 100-1200
14 28 150-1750 50-850 200-2500




Please refer to our end fittings brochure for a comprehensive range of available.

If you have any questions about the design of compression gas springs, please contact lgs@lgs-gassprings.com
