Description

Introduction:

Compression dampers act as a buffer to the speed of the connected mechanism, as opposed to the function of a stretch damper

Features:

■ The damping force of the damper changes with the change of the moving speed.

■ When a certain compressive force moves faster at the point of action, the resistance of the damper increases significantly and acts as a buffer.

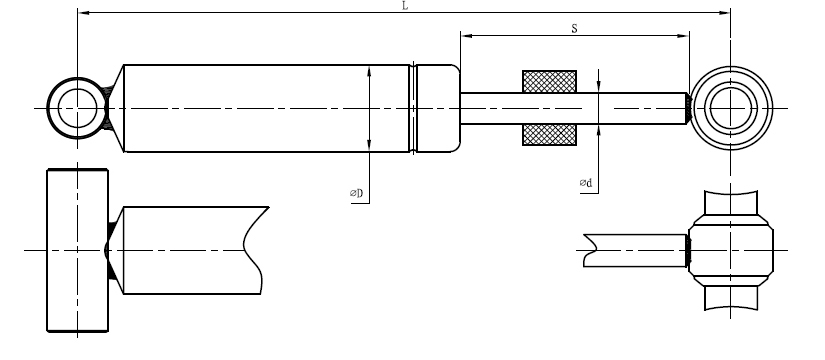

Dimensions and force range

Product Parameters


d D L S F1
(mm) (mm) (mm) (mm) (N)
6 15 95-500 20-230 根据压缩速度测试标准。
8 18 95-700 30-300
8 24 95-700 30-300
10 22 95-1200 50-550
10 24 95-1200 50-550
14 28 95-1200 50-550

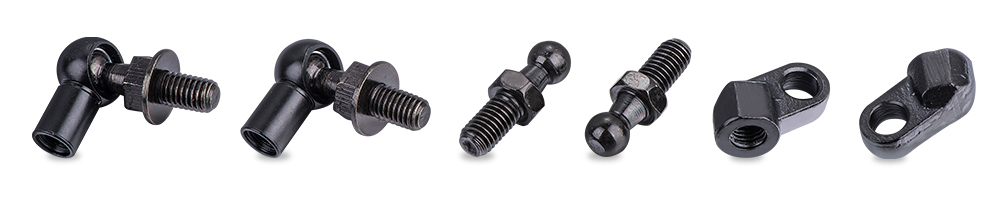

Please refer to our end fittings brochure for a comprehensive range of available.

If you have any questions about the design of compression gas springs, please contact lgs@lgs-gassprings.com
